HT-IPL-0612,600mm*1200mm LED panel Light

Power: 54W / 72W ...

Lamp efficiency: 80-100LM/W

Input voltage: AC 85-270V AC

Beam angle: 120°

Power Factor: >0.95

Ingress Protection: IP31

Color Rendering Index (CRI) : >80

hitechled led panel light,panel de led

Features:

1.Super bright LED with high efficiency (>100lm/W) as light source, saving 65% energy comparing to traditional grid light

2.Stable quality LEDs with little lumen decrease

3.The Tj for LED is less than 85°C

4.Long life time(>50,000hours)

5.Free from mercury, lead, and carbon emission

6.Low maintenance and replacement costs

7.Fixture surface with anti-static spray, resistance to acid, anticorrosive



Power connection diagram:

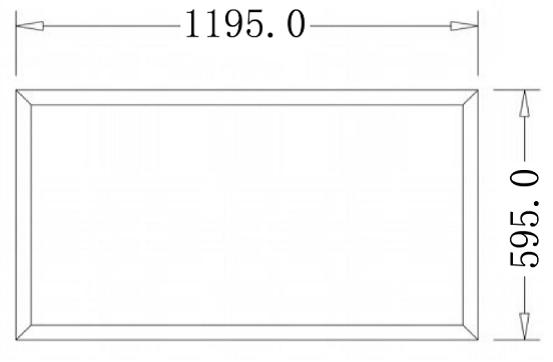

Product Size:

LED Panel Light Model: HT-IPL-0612
LED Lamp Max Power 54W / 72W
LED Chip Brand Epistar/Samsung...
Lumen (LM) >3,600lm-4,400lm(54w) / 5,000lm-5,800lm(72w)...
Life Time 50,000Hrs
Viewing Angle 120°
Material Body Aluminum alloy frame and PMMA cover
Working Temperature Range( ℃ ) -20℃~+50℃
Colour Temperature Range( K) CW: 5500-6500K / NW: 4000-4500K / WW: 2700-3500K
Power Factor: Range >0.95
CRI Range >80%
Packing Product size 595*1195*11mm

LED panel light is the best choice for office, meeting room, shopping mall, chain store, car shop, factory, hospital, school and other public entertainment place.

hightech led panel light,applications:office, meeting room, shopping mall, chain store, car shop, factory, hospital lighting
