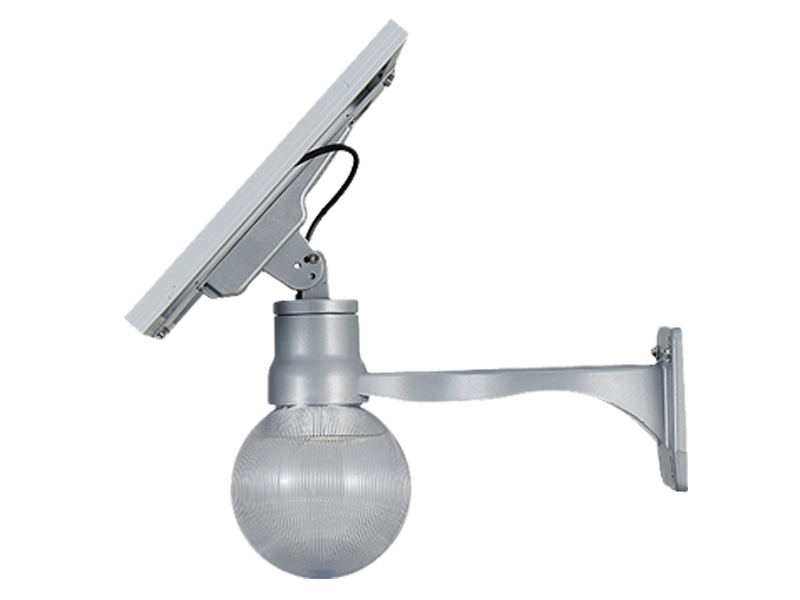

HT-SA-1004, 4W (500lm-900lm)Integratred Solar LED Moon Light

Our integrated smart solar led garden light, which integrates high lumen LED lamp, latest LiFePO4 lithium battery,high efficient sunpower monocrystal solar panel and the smart controller with PIR motion sensor(optional) together. It is 100% clean,green, renewable light.

With the elegant compact design, it is easy for transportion and installation, convenient for both pensonal and public applications.

Luminaria Solar para Jardim LED, luminarias energia solar, iluminacao jardim, focos led solares, Lampara energia solar, Luminaria Solar, luminaria solar para jardim, iluminacao solar led, luminaria de jardim solar, lamparas led solares, Lampara solar de LEDs, luminaria solar led, farolas solares, Luminaria Led Solar Jardim, Luminaria Solar Jardim, Luminaria Para Jardim LED, Farola Solar Carreteras 4W, LAMPARAS SOLARES TODO EN UNO

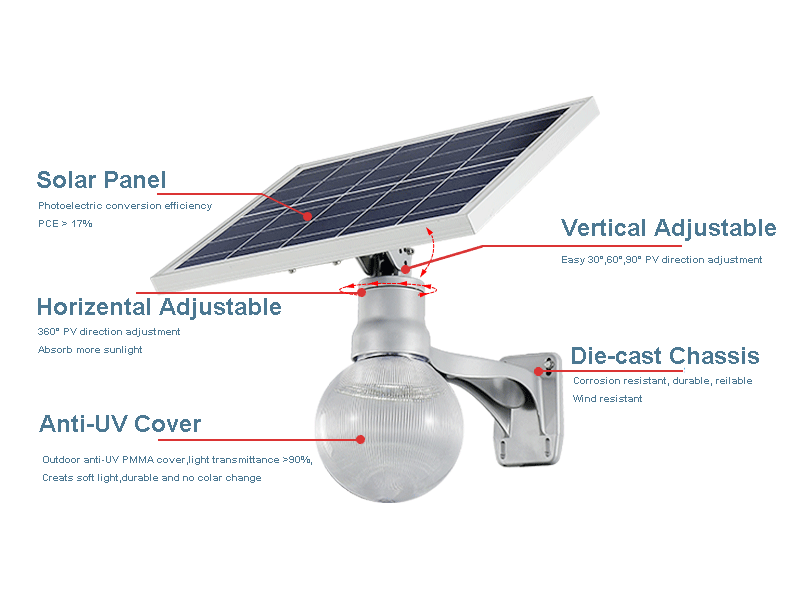

Smart All-in-one Integrated Solar Moon light Features:

1) All in one, intelligent compact design; It integrates the LED lamp, solar panel, lithium battery and controller together.Compact volume can save freight and stock costs;

2) 100% Sun powered,green renewable energy ;

3) Without any cable, easy for transportation and installation and save installation cost.

4) Built-in infrared motion sensor, can adjust the light output automatically;

5) Modern portable design can be installed anywhere needed;

6) Rust-proof, dustproof and waterproof;

7) Solar panel direction rotatable;

8) Auto turn on at dusk and turn off at dawn.

Benefits of Smart Integrated solar Garden/Street Light

Lower initial cost– It is less expensive to purchase and install a solar powered street light than a traditional street light.And the most more important is that it's Sun light powered, 100% energy saving.

Lower Operation Cost– Without switch box or cable, easy to install and ship.

Lower maintenance cost– The solar panel lifespan is 25 years, and LED lifespan 50,000hrs. Lithium battery is much longer than lead-acid battery that other suppliers mainly use.

Compact Design- Our design and technology implementation have been driven by our desire to eliminate the need for bulky external battery boxes and external solar panels and achieve a FULLY INTEGRATED Solar Powered Street Light. To achieve this, we have designed our system to have maximum light output with minimum power consumption using our proprietary high efficiency solar cells located directly on the light fixture.

Reduced Damage/Theft- By locating the solar technology directly on the light fixture and placing the battery within the light fixture, the risk of damage, theft or tampering is greatly reduced. There are no wires in the street pole, which means that the wire itself (which exists in regular street lights) can’t be stolen and sold for scrap.

Ruggedized Technology– The solar powered street light is deigned based upon our extensive experience of using electrical and electronic equipment in harsh environments, our engineered solutions require less maintenance and reduced parts replacement due to initially incorporating higher quality components.

Insect Swarms– The solar powered street light uses LED lighting which does not produce Infrared light, and therefore will not attract insects. (No more moths and other flying insects swarming around the light.)

Improved Safety– The solar powered street light does not require connection to an electrical grid. It is safer and easier to install. In the event of a power outage, the light remains on. This reduces the chance of car accidents and the constant light deters theft/vandalism from nearby businesses.

Anywhere/anytime – The solar powered street light can be used in any location. Since no electrical grid is required, it can be installed on buildings, in parking lots, in remote locations simply by hanging it on a pole.

Faster Installation– Since you don’t need to trench power lines to the pole, run wires up the pole, connect wires to an electrical grid, or hard wire the street light, the installation is significantly faster. In fact, it is so easy, it can be installed on the pole before it’s erected, and thereby reducing a step completely from the process.

All-in-one Solar Moon Light (4W) Model: HT-SA-1004
Solar panel Max Power 5.4V 10W (high efficiency Polycrystal Cells)
Life Time 25 years
Battery Type 10AH,3.2V LiFePO4 battery pack
Life Time >2,000 Circles( more than 5 years)
LED Lamp Max Power 4W~6W
LED Chip Brand Bridgelux from USA
Lumen (LM) 500-900lm
Life Time 50,000Hrs
Viewing Angle 120°/120°
Charging Time by sun(strong) 6~8hours
Discharging time Full power >12hours
Half power >24hours
30% Saving Mode >30hours
Working Temperature Range( ℃ ) -20℃~+60℃
Colour Temperature Range( K) 3000K~3500K or 6000K~6500K
Mounting height Range( m) 2.5m-4m(suggested)
Space Between Light Range( m) 5-10m(suggested)

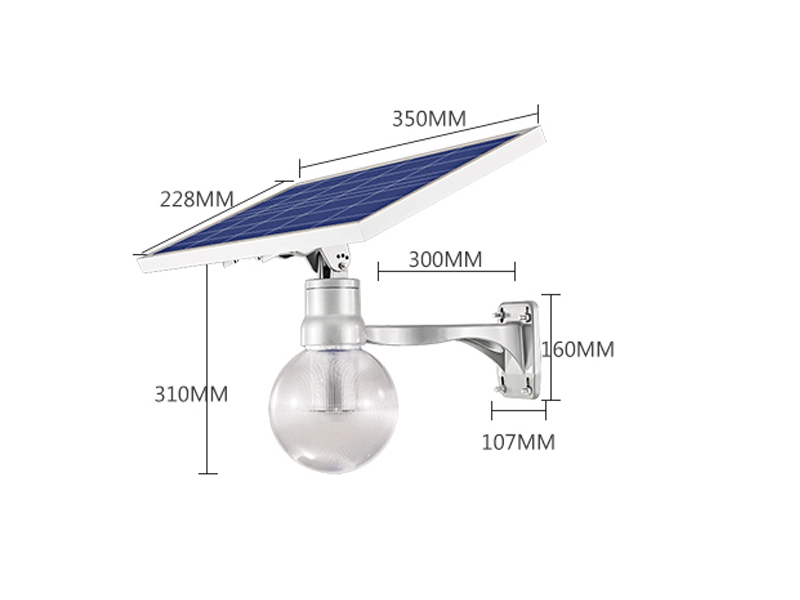

Packing & Weight Packing size 480*330*240mm
G.W. 4.8kgs

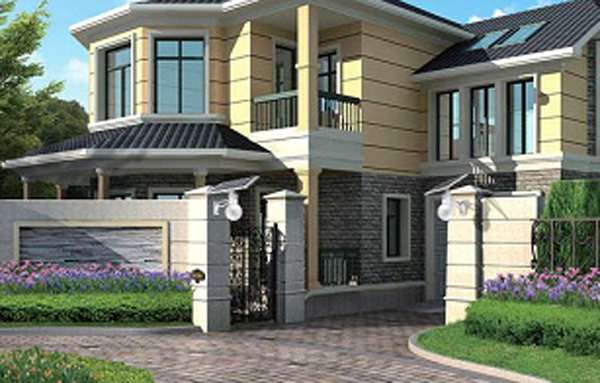

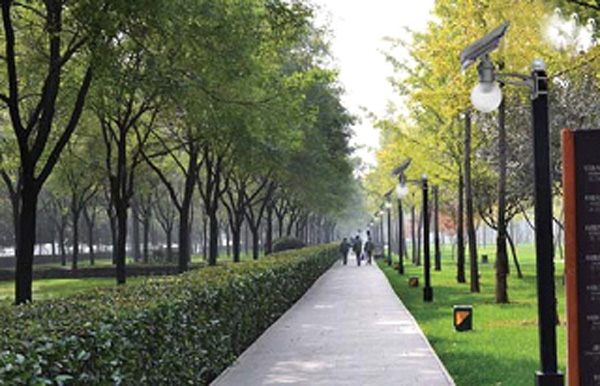

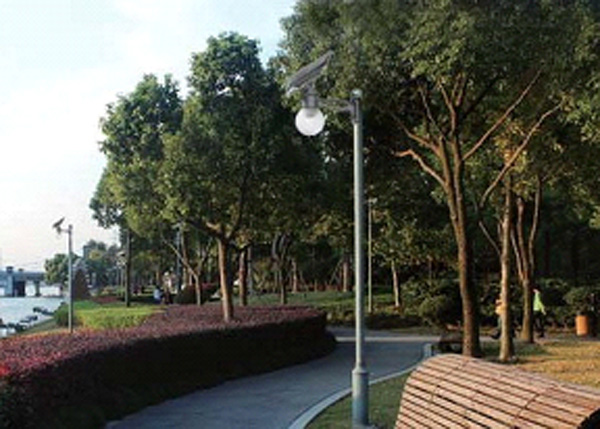

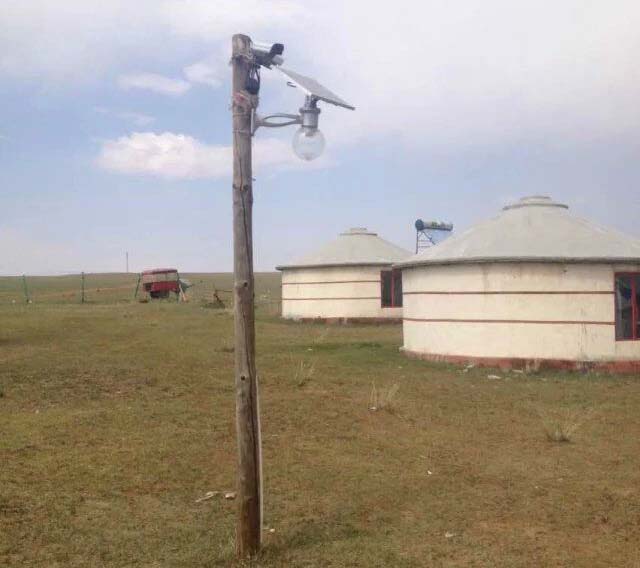

It can be frequently used new rural construction lighting, residential lighting, parking lot lighting, pathway lighting, ramp lighting, perimeter security lighting, farm & ranch lighting, wildlife area lighting, dock& pier lighting ,garden lighting, campus lighting, county yards lighting, desert lighting, seaside resort lighting, military base lighting, any exterior area wherever there is sufficient sunlight, especially for those places where wiring is not economic and/or achievable..

Lampara solar LED integrada, LAMPARAS SOLARES, Todo-en-uno Solar Farola, Lampara solar todo en uno, solar led farola, Farola Solar LED, LED Luminaires, Luminaria Parque Solar, all-in-one solar garden light, Luminaria solar, Farolas Solares de Carretera, Farolas Solares de Jardin, luminaria Solar de Jardin, Luminaria Solar Poste, applications: Jardines, Parcelas, Parques, Calles, Carreteras, Caminos, Estacionamientos, Plazas, Campos, Pasillos, Paseos

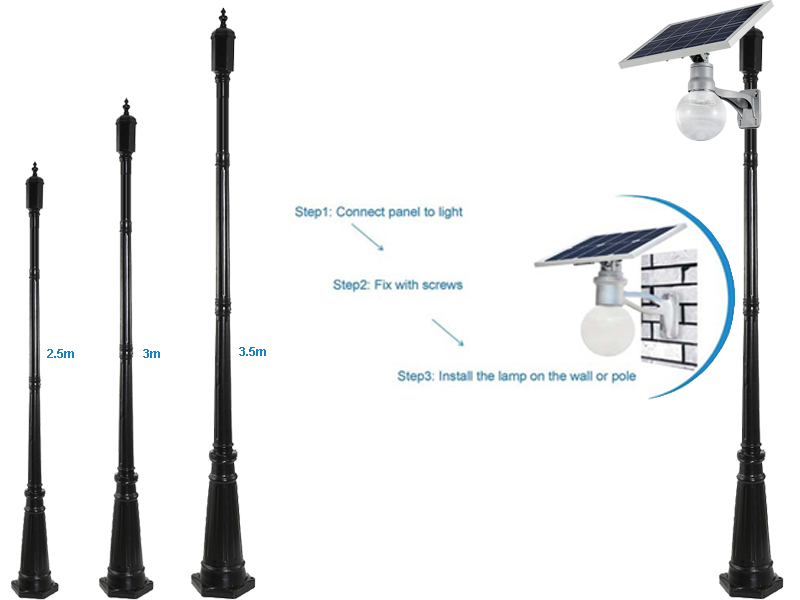

Installation Recommendation:

1) Suggested Top Pole Diameter: 50mm~80mm;

2) Suggested Mounting Height: 2.5m~5m;

3) Suggested Mounting Space Between Lights: 8m~15m

4) Standard 2.5m,3m,3.5m poles available(optional)

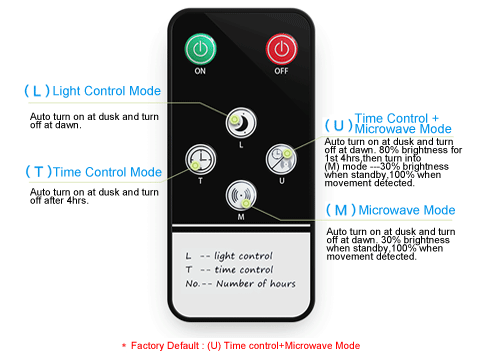

Six working mode choices:

1) ON: No matter day or night, light "on" when people,close, light "off" after people left.

2) OFF: Light "off",No matter day or night.

3) L: Auto turn on at dusk and turn off at dawn.

4)T: Auto turn on at dusk and turn off after 4hrs.

5)M: Auto turn on at dusk and turn off at dawn. 30% brightness when standby,100% when movement detected.

6) U: Auto turn on at dusk and turn off at dawn.80% brightness for 1st 4hrs,then turn into (M) mode --- 30% brightness when standby,100% when movement detected.
